The innovative Clevatech Boiler Lifter is a must have tool for installation companies and gas engineers
A safer way to install gas boilers
Muscle strains and back injuries due to manual handling are common for installers. This can lead to time off work and loss of earnings.
According to a national survey run by the Office for National Statistics:
477,000 workers suffered from work-related musculoskeletal disorders (new or long-standing) in 2021/22. The back was affected in 42% (202,000) of these cases.
7.3 million working days were lost due to work-related musculoskeletal disorders in 2021/22. Conditions affecting the back account for 40% of these with an estimated 14.2 days lost per case.
Labour Force Survey (LFS).
We've got your back!
Clevatech has developed a new Boiler Lifter tool which is designed for installation companies or individuals who value health and safety in the workplace. It makes lifting a gas boiler, on and off the wall, easier and much safer.
The Clevatech Boiler Lifter is fully compliant with Health and Safety Executive guidance for working safely. Using this tool will greatly reduce the risk of injury due to manual handling.
Operated by one person the Boiler Lifter is ideal for awkward installations in confined spaces. Not only does using the lifter make installing easier and safer it could result in big savings in labour costs.
Clever technology utilises a standard core drilled flue hole, through a cavity wall, to securely lock the tool in place. A sliding arm extends to clear expensive work tops and other obstacles. Powered by a brushless drill, the lifter makes quick and easy work of handling heavy boilers, just by squeezing the trigger. The tool takes the boilers weight, while the installer guides it safely and precisely onto the wall bracket.
The Lifter can be used just as effectively to safely remove old, decommissioned, and broken boilers.
One of our biggest challenges is to change installers attitude to health and safety, and get them to seriously consider the risks involved from manual handling.
How it works
Safely installing a gas boiler is a one-person job with this brand new, one-of-a-kind CLEVATECH tool.
Operating instructions
To make sure the Clevatech Boiler Lifter works for you check out the operating instructions here.
Clever features
Through good product design and engineering we can help improve workplace safety levels and prevent injuries.
The CLEVATECH Boiler Lifter is engineered to be robust, tough and durable enough for any site environment. The unique design and use of high grade materials means it can lift heavy and cumbersome boilers safely and with ease.
Operated by one person the Boiler Lifter is ideal for awkward installations in confined spaces. It’s like having an extra pair of hands to take the boilers weight, while you guide it safely and precisely onto the wall bracket. No more waiting for help, which could save time and money.
Clever technology makes use of a standard core drilled flue hole, through a cavity wall, as an anchor point.
The CLEVATECH Boiler Lifter will lift most wall mounted gas boilers available on the market today.
A dual action locking system ensures the boiler lifting tool is securely fixed in place.
Specially designed and developed Cam buckle safety guards prevent accidental release of the boiler harness straps during the lift.
The sliding arm fully extends 820mm and will clear expensive work tops and other obstacles. Giving you peace of mind and confidence working in anyone’s home.
The telescopic aspect is fitted with a magnetic friction brake for a controlled smooth action.
Powered by your brushless drill the CLEVATECH Boiler Lifter makes quick and easy work of lifting boilers, just by squeezing the trigger.
What's included
This innovative boiler lifting tool is for responsible installation companies or individuals who value health and safety in the workplace. If you want to put safety first, and you like what you've seen, don't delay buy today!
The Clevatech Boiler Lifter is made in Britain by skilled technicians. It comes with a handy tool bag to carry all of the kit, which includes:
- Lifting tool
- Boiler harness assembly
- 2 x Boiler straps 25mm
- Lifting bar assembly
- 2 x Lifting bar height adjustment blocks
- Drill socket adaptor
- Boiler centre gauge
- External wall plate for single storey buildings
- Tool bag
Act NOW and you may never have to manually lift a boiler again!
Save your back and let the brand new and totally unique Clevatech Boiler Lifter take the strain.
£675 (excl. VAT)
Some of our customers
Join our fast growing customer base and invest in Health and Safety for installers.
Frequently Asked Questions
The lifter complies with UKCA for UK market and CE for EU market.
The lifter is designed to work in standard concentrically drilled flue holes of 4”, 4.5” and 5” so will adapt to suit 107mm to 127mm diameter holes.
No, the lifter is designed for external cavity walls constructed from Brick, Block, Concrete or Stone (or a combination of those).
The maximum extension of the winch head lifting point is 820mm from the inside wall. This will allow most boilers to be lifted clear of a typical kitchen worktop, cloakroom WC or hot water storage tank.
Yes, the flue position needs to be central and exit horizontally above the boiler. This applies to 90% of boilers.
The FoS is 4 which means the lifter is designed and tested to handle loads in excess of 4 times its Safe Working Load (38kg) at full extension.
The harness will work with boilers up to 460mm wide.
The external wall plate is recommended for single story extensions where there is less than 500mm of brickwork from the top of the flue hole to the roofline. In these cases, we recommend mounting the wall plate over the lifter profile protruding through the outside cavity and fixing in place with 4 x No.10 steel fixing screws.
We recommend a brushless drill and use of lowest speed/highest torque setting.
Yes, the lifter can be used if the old boiler complies with the specified maximum load weight it is designed for. You will need to remove the flue first and ensure the core drilled holes through the cavity wall are concentric. Feed the harness perimeter straps between the back of the boiler and the wall using the boiler gauge/strap feeder. We recommend you use the lifting bar adjustment blocks to pre-tension the harness equally. The blocks are then removed to give enough slack to unhook the boiler from the wall bracket.
It is the owners responsibility to regularly check the lifter and harness for damage. We adopt a best practice approach to this and will endeavor to send our customers a reminder email/text every 6 months asking them to inspect the equipment. Spare parts (such as lifting harness, drill adaptor, lifting bar, D-Shackle, perimeter strap, toolbag and cam buckle cover) will be available to purchase from us at discounted prices. So, if in doubt, order a new part and we will send it out as soon as we can.
Yes, of course, when you go to the shop basket and checkout you will see an option to waiver the delivery fee and collect in person. We will contact you when your order is ready to collect from our Gloucestershire premises.
Helping to improve workplace safety levels and preventing injuries
Muscle strains and back injuries due to manual handling are common for installers. This must have tool is fully compliant with Health and Safety Executive guidance for working safely.
Manual handling at work guidance

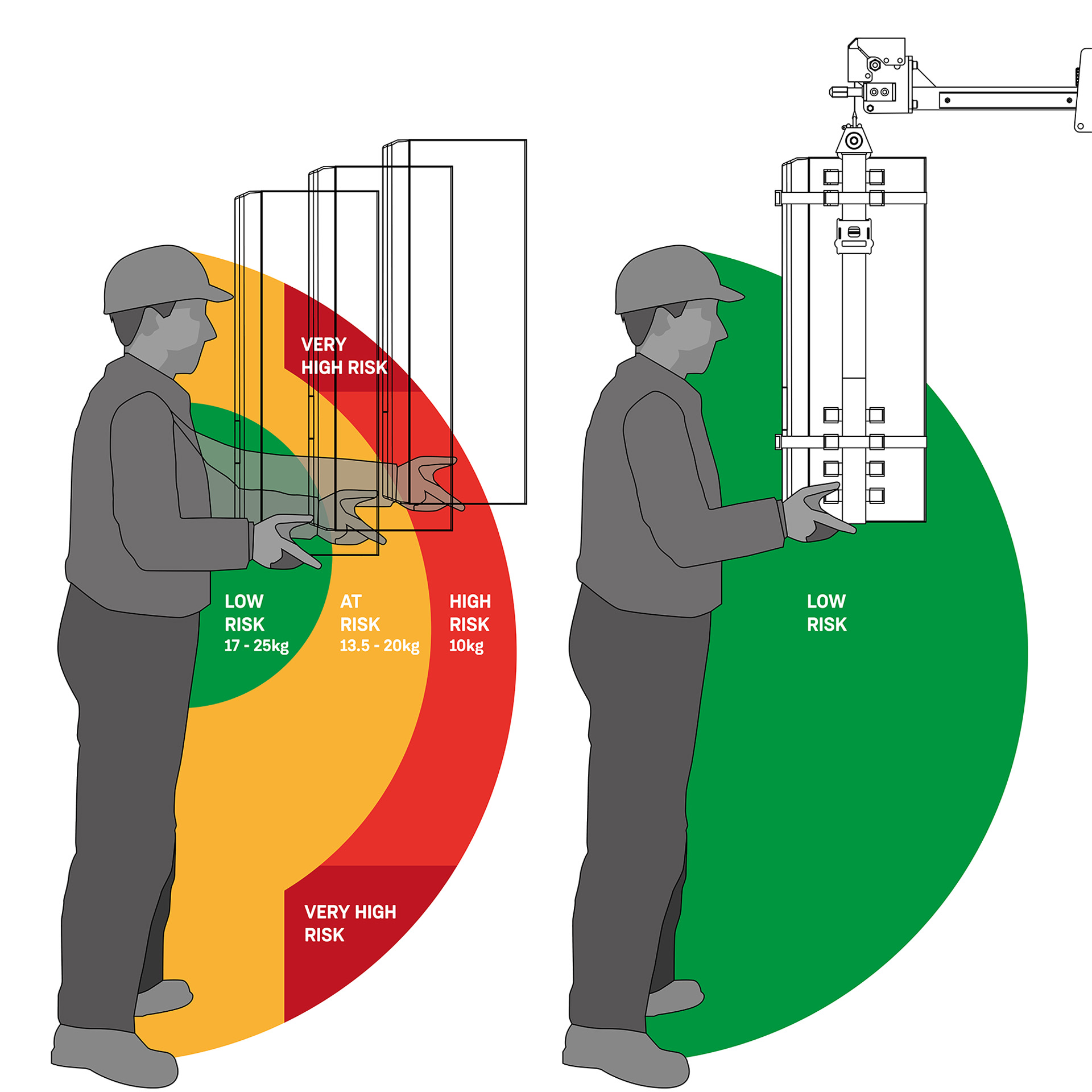

As an employer, you must protect your workers from the risk of injury and ill health from hazardous manual handling tasks in the workplace. The Manual Handling Regulations set out a clear hierarchy of measures you must follow to prevent and manage the risks from hazardous manual handling:
- Avoid hazardous manual handling operations, 'so far as reasonably practicable'.
- Assess the risk of injury to workers from any hazardous manual handling that can't be avoided.
- Reduce the risk of injury to workers from hazardous manual handling to as low as reasonably practicable.
- If handling the load cannot be avoided, consider whether the operations can be automated or mechanised to eliminate the manual part of the handling.
By putting people first the CLEVATECH Boiler Lifter:
- Reduces the risk of injury from hazardous manual handling.
- Is easily and safely operated by one engineer.
- Eliminates the manual part of handling.
- Can lessen absence from work.
- Could save time and money.
About us
At Clevatech we design, manufacture, and supply innovative products to enhance and improve work practices.
Our mission is to take clever ideas and develop them into useful products.
The best product design and top quality engineering principals are at the heart of what we do.
