Product details
The Clevatech Boiler Lifter toolkit comes with a handy tool bag and includes:
- Lifting tool
- Boiler harness assembly
- 2 x Boiler straps 25mm
- Lifting bar assembly
- 2 x Lifting bar height adjustment blocks
- Drill socket adaptor
- Boiler centre gauge
- External wall plate for single storey buildings
- Tool bag
Operated by one person the Boiler Lifter is ideal for awkward installations in confined spaces. Clever technology utilises a standard core drilled flue hole, through a cavity wall, to securely lock the tool in place. A sliding arm extends to clear expensive work tops and other obstacles. Powered by a brushless drill, the Lifter makes quick and easy work of handling heavy boilers, just by squeezing the trigger. The tool takes the boilers weight, while the installer guides it safely and precisely onto the wall bracket.
The Clevatech Boiler Lifter can be used just as effectively to safely remove old and broken wall mounted gas boilers.
Clever features
- Operated by one person
- Works with a standard core drilled flue hole (4", 4.5", and 5"), through a cavity wall
- Maximum load capacity 38kg fully extended
- Sliding arm extends 820mm
- Powered by your brushless drill
- Maximum lift height 2.3m from the top of the boiler
- The harness is designed to securely fit boilers up to 460mm wide
- Specially designed and developed Cam buckle safety guards prevent accidental release of the boiler harness straps during the lift
Operating instructions
Preparation
- Lifter to be used with concentric flue holes drilled through cavity walls constructed of brick, block, concrete or stone (not stud/internal walls).
- Lifter to be used in flue holes drilled with 107mm to 127mm size core bits.
- Total wall thickness from inside of inner cavity to outside of outer cavity (lower lock clamping distance) needs to be minimum 260mm and maximum 380mm (suites old and current build standards).
- Ensure weight of boiler to be lifted or lowered is 38kg maximum at full telescopic extension point.
- If the flue hole edge is within 500mm of gutters or roof (single story extension wall) then supplied wall plate should be used. Ensure plate is fixed to exterior wall using minimum of 4 x No.10 steel wall screws.
- Always do a visual check on lifter and harness to ensure no damage prior to using.
Lifting operation
- Insert lifter through flue holes from inside of the property. Push lifter into flue hole until it is fully home and flange plate touches wall.
- Turn lower control knob clockwise to move lower clamp towards outside wall. Stop turning control knob when resistance is felt and the lifter unit securely clamped between inside and outside walls (Hand tight is sufficient, DO NOT use pipe grips or any other tool to increase torque applied to lower control knob).
- Turn upper control knob clockwise to raise the self levelling jack until hand tight (DO NOT use pipe grips or any other tool to increase torque applied).
- Lay lifting harness assembly on floor ( with CLEVATECH logo facing upwards ) in central position from where boiler will be lifted.
- Place boiler centrally on top of lifting harness assembly.
- Use Boiler Centre Gauge to measure width of boiler to be lifted.

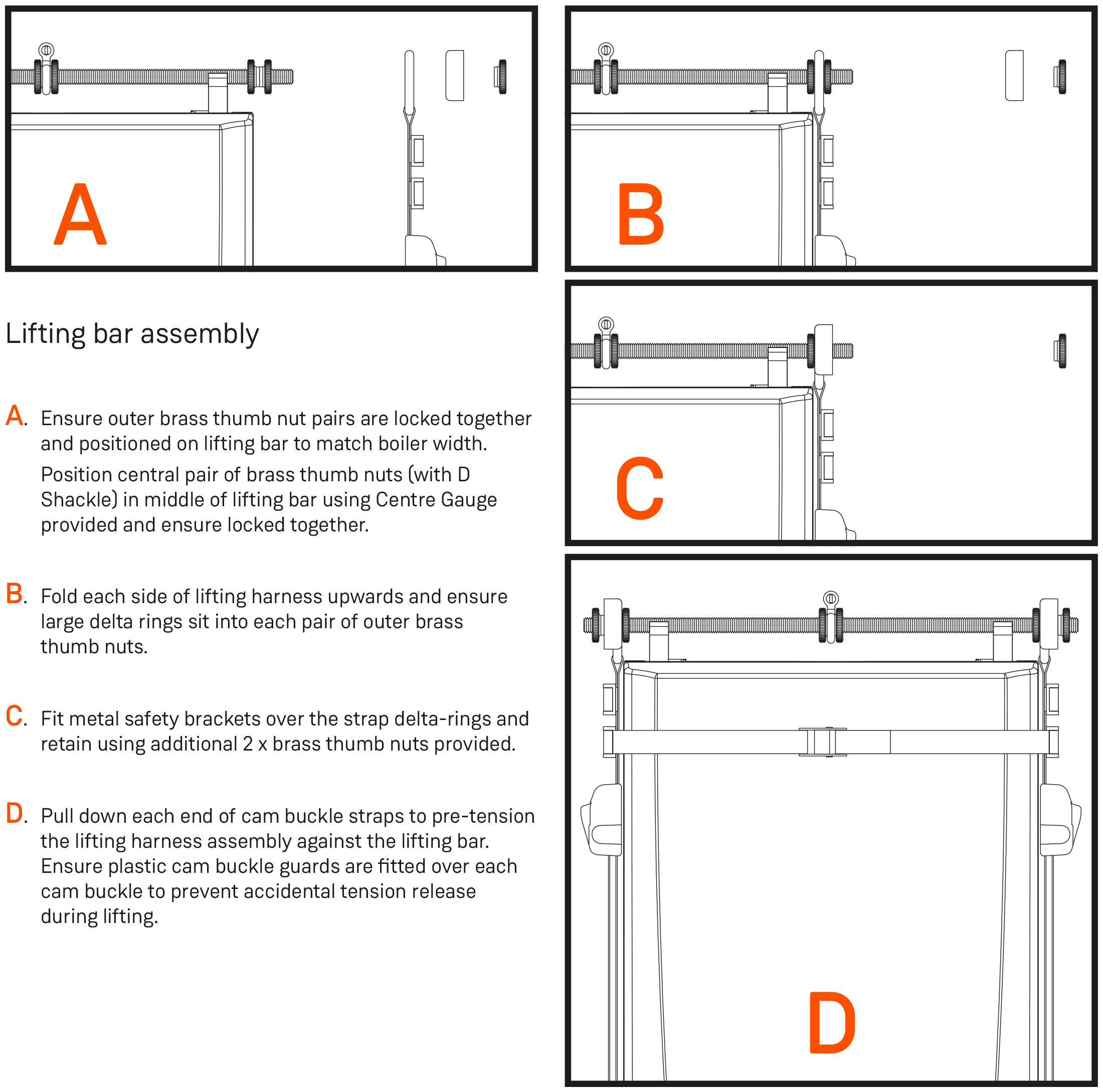

- Ensure outer brass thumb nut pairs are locked together and positioned on lifting bar to match boiler width.
- Position central pair of brass thumb nuts (with D Shackle) in middle of lifting bar using Centre Gauge provided and ensure locked together.
- Position 2 x lifting bar pre-tension blocks on left and right sides of top surface of boiler.
- Lifting bar assembly can be placed inside matching positions of each pretension lifting block so that the lifting bar lies as close to top of boiler as possible but clear of flue collar flange.
- Fold each side of lifting harness upwards and ensure large delta rings sit into each pair of outer brass thumb nuts.
- Pull down each end of cam buckle straps to pre-tension the lifting harness assembly against the lifting bar. Ensure plastic cam buckle guards are fitted over each cam buckle to prevent accidental tension release during lifting.
- Feed perimeter strap though 4 x plastic buckles near top of boiler. Tension strap via buckle then snap closed each of the 4 plastic buckles.
- Repeat above using perimeter strap near bottom of boiler (for boiler uninstalls use Centre Gauge/Strap feeder to attach perimeter strap ends in 2 x slots and feed straps between boiler and wall).
- Ensure boiler is completely contained by rocking boiler using lifting bar. Ensure both perimeter straps and main lifting harness are tensioned correctly. All plastic buckles are closed and both large cam buckles are fully tensioned.
- Remove winch strap delta ring from safety caribena on lifter to allow telescopic extension of lifting arm winch.
- Pull winch head away from wall until it is positioned above boiler to be lifted.
- Insert 17mm drill adaptor into brushless drill and use drill to unwind strap (anti-clockwise rotation, high torque/low speed setting).
- Connect winch strap delta ring to lifting D Shackle and ensure threaded retention pin is securely screwed into D Shackle.
- Use drill to lift boiler using 17mm adaptor (clockwise rotation, high torque/low speed setting). After lifting boiler a small distance off floor check to ensure good anchorage of lifter within cavity wall and no undesired movement.
- Remove pre-tension blocks from top of boiler (gap allows free movement of boiler to position onto wall mounting plate).
- Lift boiler vertically using drill to a position coinciding with wall mounting plate. Always use drill with arm outstretched and stand with feet positioned away from underneath the boiler.
- Push boiler into wall using winch guard for controlled action (not boiler itself).
- When in position gently hook boiler onto wall plate.
- Use drill (anticlockwise) to remove tension from winch strap.
- Remove 2 x perimeter straps from boiler.
- Slide winch head away from boiler and remove lifting harness assembly and lifting bar assembly.
- Turn both control knobs anti-clockwise fully to lower jack and set wall clamp into home position.
- Wind winch strap back onto worm drum using drill (clockwise) then attach strap delta ring to carabiner for safe removal of lifter from wall.
- Remove lifter from flue hole.
- Attach flue assembly.
Lifter periodic checks/maintenance/safety
- Checking lifting harness assembly regularly for damage is recommended and inspection every 6 months is essential. If harness is damaged then it is the user's responsibility to replace it. Spare harnesses are available to purchase from our website.
- Do not apply grease or lubricant spray to winch worm/wheel.
- Do not apply cleaning solution to winch strap.
- Ensure cam buckle safety guards are fitted on lifting harness. Spare guards are available to purchase from our website.
- Wear suitable PPE when using equipment (safety shoes & eye protection).

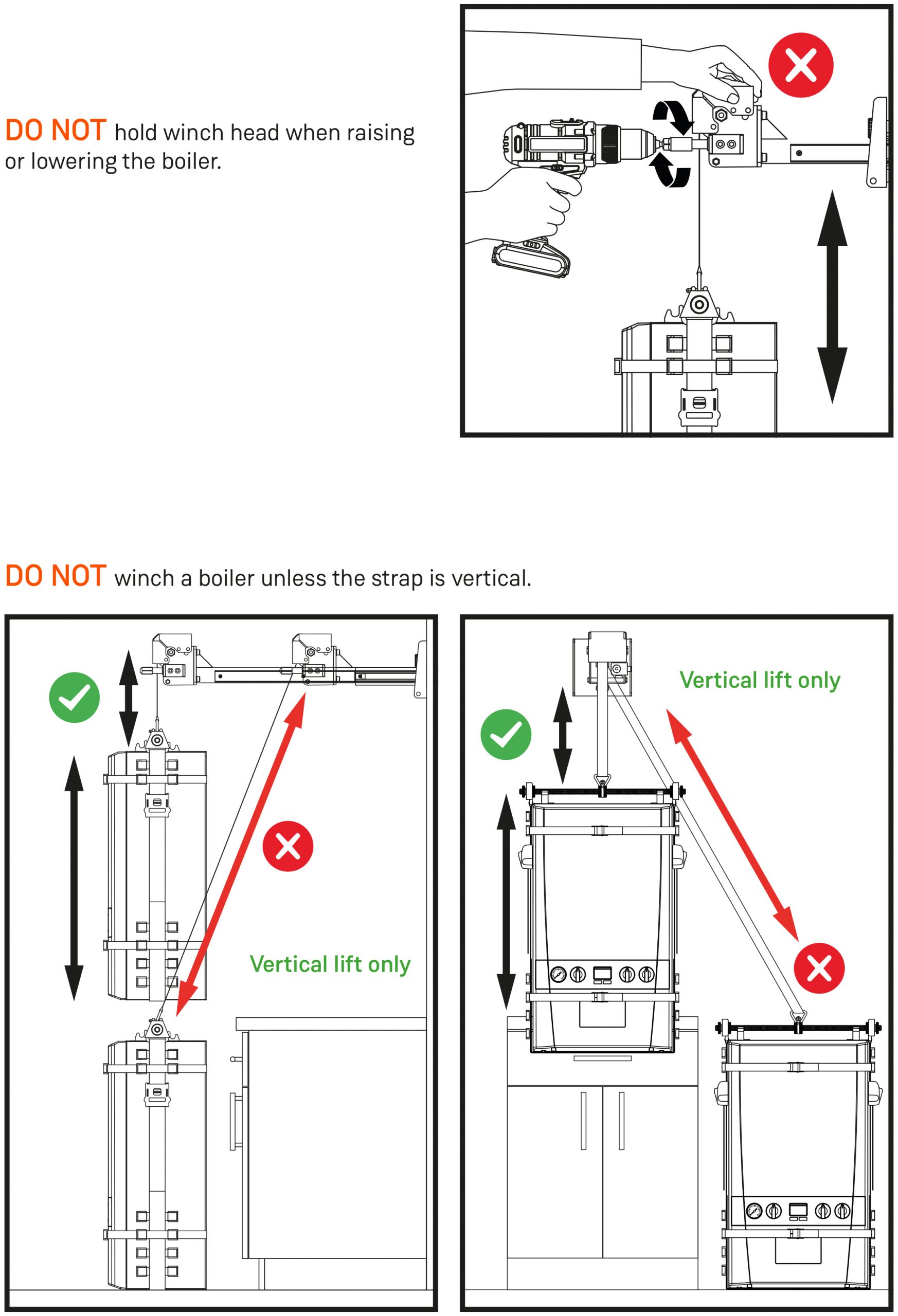

- Never place fingers near winch head during the lifting/lowering of a boiler or winding strap onto/off winch drum.
Specifications
- Lifting tool dimensions: 890mm (l) x 144mm (w) x 157mm (h)
Materials of construction
- Main extrusion: 6063-T6 Alloy
- Telescopic boom extrusion: 6061-T6 Alloy
- Telescopic slides: Cold rolled steel zinc plated
- Lifting harness: 50mm Duplex polyester webbing (double thickness under boiler) with 25mm Durafex nylon buckles
- Top clamp: 304 Stainless steel
- Bottom clamp: 304 Stainless steel
- Leadscrews: 316 Stainless steel (M8 + M10)
- D - Shackle: 316 Stainless steel
- Lifting bar assembly: M16 threaded rod 304 stainless steel with brass thumbnuts
- Mechanism pins: 1.4540 Steel (15-5PH)
- Worm winch: 20:1 ratio 25mm polyester webbing and 316 stainless steel delta ring
